Rocket Experiment for Neutral Upwelling 2

NASA Mission 52.002 - Flight Dynamics

On this page you information about the rocket's flight itself:

Instrument Data

Supplemental Information

  • GPS
  • Attitude Solution
  • Payload Orientation
  • Exo Coning & Imbalance
  • Coning plot (from Science Mag)
  • Instrument Flight Data
  • Marc's mission summary
  • Data/Plot Archive
  • To add information, please contact Bruce Fritz


    Data & Plots

    52.002 Lessard GPS Data

    Main Payload GPS

    Data files:
    Data in Excel format
    Data in CSV format

    From Brian Banks

    Sub Payload GPS (15 Feb 2015, Steve Powell)

    Data files:
    Data in Excel format
    Data in CSV format

    Steve has combined Andøya data with the Svalbard data to provide GPS data for the sub-payload through the end of the flight. Provided are both an Excel and CSV (same contents) file with all of the sub-payload COUGAR GPS data. Combining the Andøya and Svalbard data has extended the final LOS data point from T+688 sec @ 139.7 km altitude (07:45:28 UT) to T+729 sec @ 41.2 km altitude (07:46:09 UT), an increase of 41 seconds of data.

    Please contact Steve Powell directly for any questions about the data.


    52.002 Lessard Attitude Solution

    FINAL REPORT (21 Mar 2016, NSROC)

    Document:
    PDF Format

    This is the final report for postflight attitude determination provided by the Flight Performance division of NSROC II. Prepared by Christopher Smith, reviewed by Mike Disbrow.

    Main Payload Attitude

    Data files:
    Data in .csv format

    T0: 12\13\2015 7:34:0.7 GMT

    Launcher Settings: Lat = 69.2942 Deg., Lon. = 16.0193 Deg.
    Alt: 171.3 Ft, El: 80.28 Deg., Az: 12.08 Deg., Bank: 0 Deg.

    Attitude Output: time (sec from T0), roll (Euler angle in deg.), yaw, pitch, Roll rate, Euler angle matrix elements, local geodetic coordinates and velocity of the payload, lat (geo), long (Geo), Altitude(meters)

    Position Source: GPS

    Attitude Source: GLNMAC

    See the README file for further detail on the file contents

    Sol-Mag Attitude for Sub-payload

    Data files:
    Data in .csv format

    T0: 12\13\2015 7:34:0.7 GMT

    Launcher Settings: Lat = 69.2942 Deg., Lon. = 16.0193 Deg.
    Alt: 171.3 Ft, El: 80.28 Deg., Az: 12.08 Deg., Bank: 0 Deg.

    Attitude Output: time (sec from T0), roll (Euler angle in deg.), yaw, pitch, Roll rate, Euler angle matrix elements, local geodetic coordinates and velocity of the payload, lat (geo), long (Geo), Altitude(meters)

    Position Source: GPS

    Attitude Source: GLNMAC

    See the README file for further detail on the file contents


    52.002 Lessard Payload Orientation

    Produced by Shane Thompson & Brian Banks (NSROC)

    Files:
    Payload Drawings
    Sensor Map

    There are two files provided.

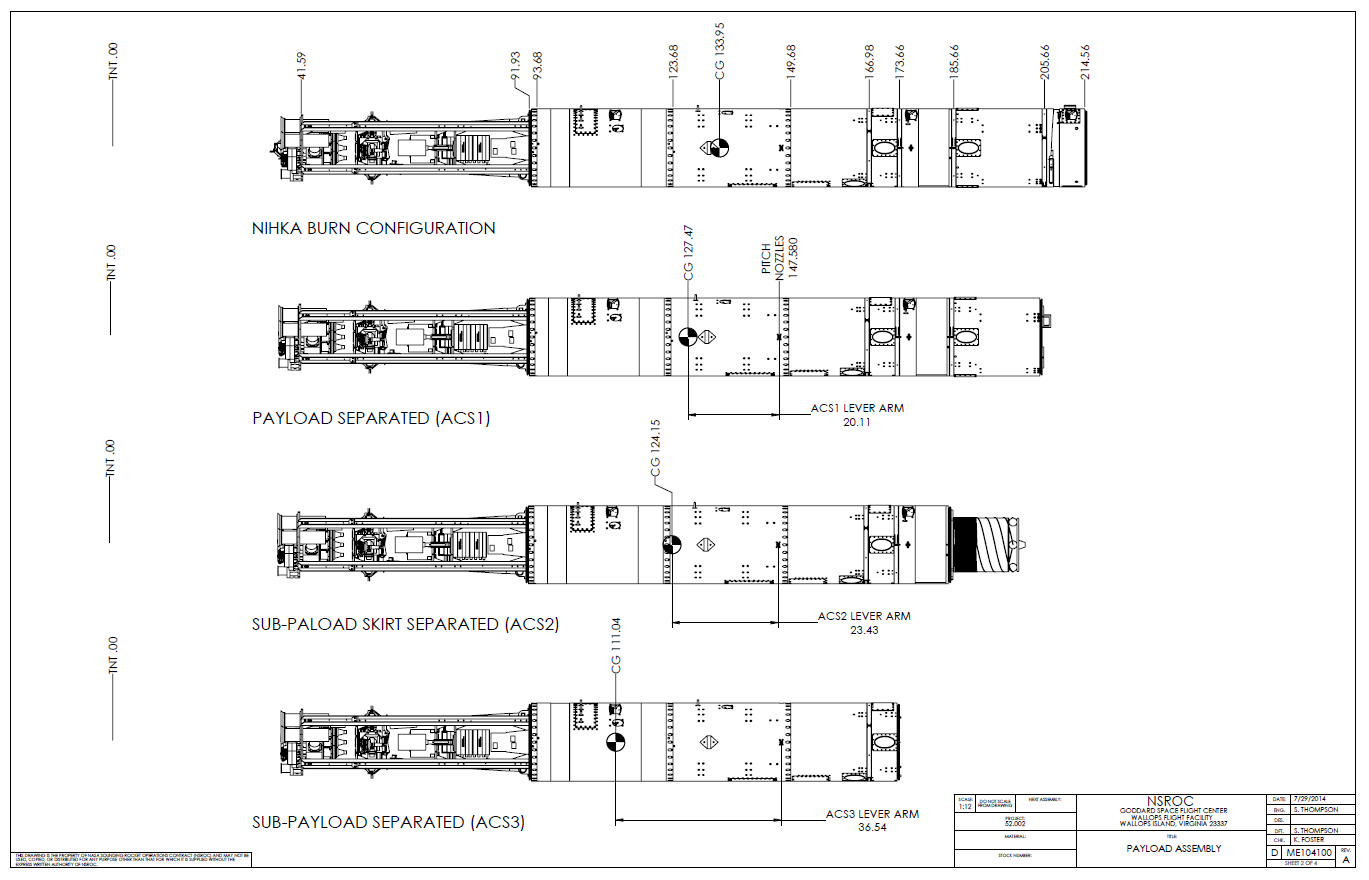

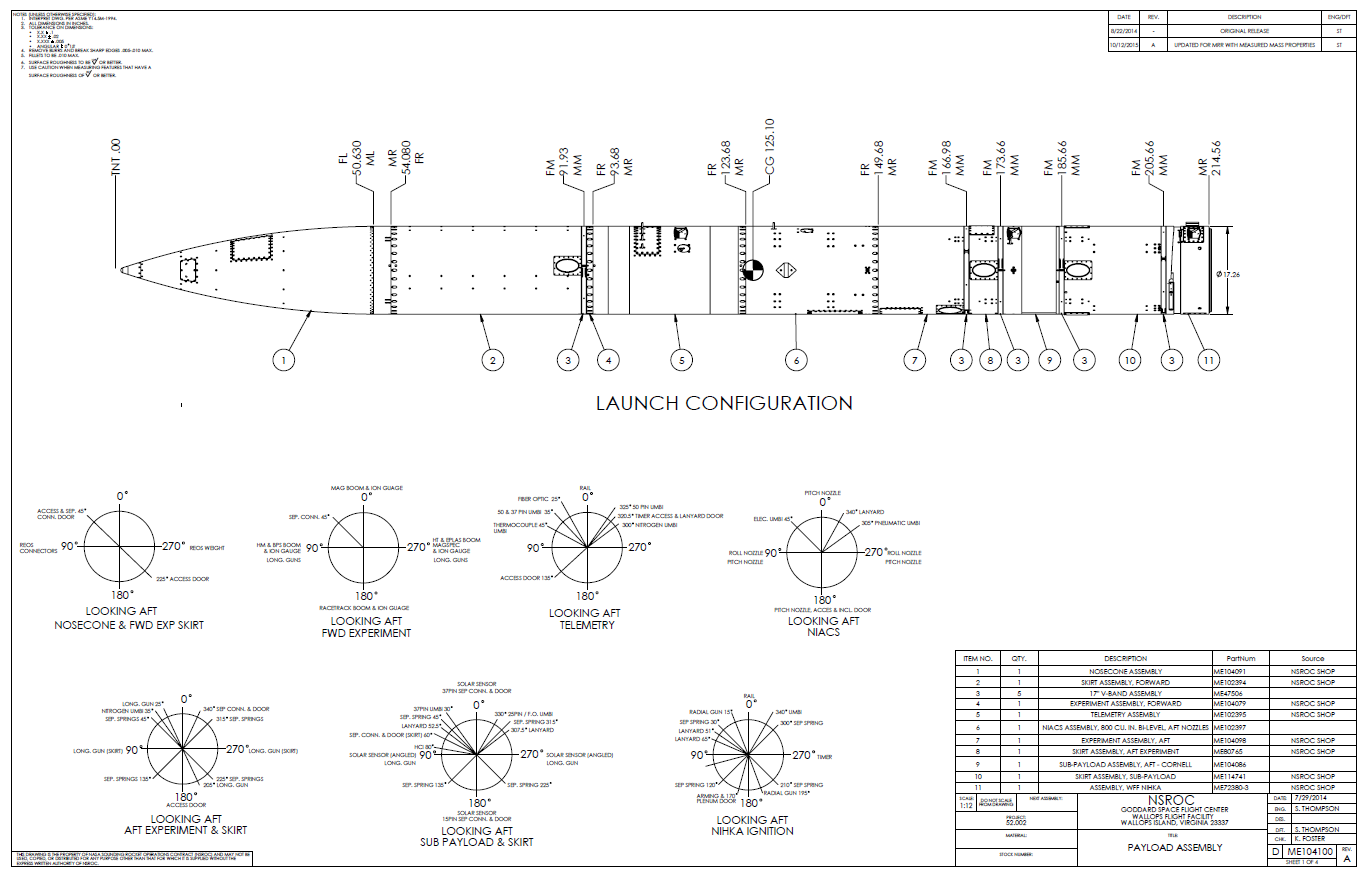

    "Payload Drawings" is provided by Shane Thompson (NSROC). It includes the flight configuration of the RENU 2 payload and invludes information about relative location of instruments on board the payload. A couple examples are shown above.

    "Sensor Map" is provided by Brian Banks (NSROC). This is a spreadsheet compiled of all the relative locations of the payload sensors on RENU 2 (e.g. TM Mag, Thermistors, Accelerometers, etc.)


    Exo Coning & Imbalance

    Summary plots of payload attitude during flight (Mike Disbrow, 20 January 2016)

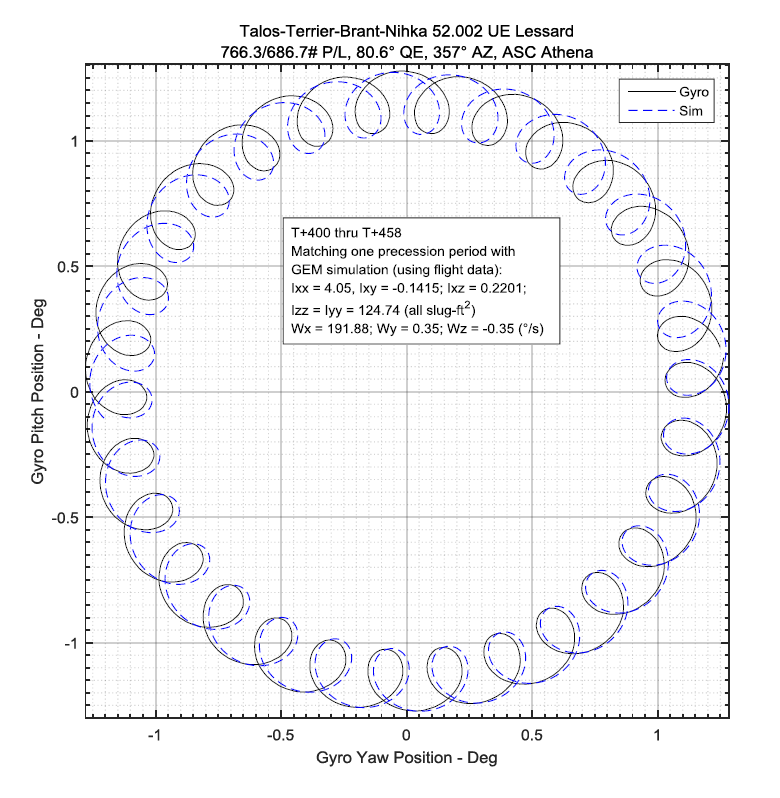

    ACS did a great job keeping the cone size small, only 1.2 deg half angle (and 0.13 deg/sec lateral rate). Dynamic imbalance is computed from the gyro rate data and it seems to me to be 22 times larger than measured (19,400 oz-in^2 compared to measured 901 oz-in^2). [Mike is] getting a direction of 32.7 deg for this imbalance (principal axis is tilted towards ME angle 32.7 deg viewed above the CG). This is confirmed by putting the imbalance into GEM simulation and it matches very well (click image to open PDF, page 2 of the attached). Waiting for confirmation of imbalance from ACS.

    The last two pages show the average upward spin-axis direction compared to the average upward B-field direction, in both a local geodetic frame and an inertial frame.

    Mike has created an animated movie file of these plots.


    Pitch Angle Plot (Billingsley Mag)

    (Mark Widholm, 3 February 2016)
    Data Files:
    IDL .sav

    Data file contains two arrays.

    SM_ARRAY contains the data in degrees.
    SM_TIME contains the time in increments of 10 ms. File starts at T0+207 seconds (after mag boom deploy).

    This is the main payload spin axis pitch angle based on Billingsley magnetometer data. This calculation just uses a coarse magnetometer calibration but it should be accurate to within about a degree. It seems to agree well with the ACS data from Mike Disbrow.

    Coning is about 2 degrees full angle. Best alignment is at 524 sec. Zero degrees is best alignment.
